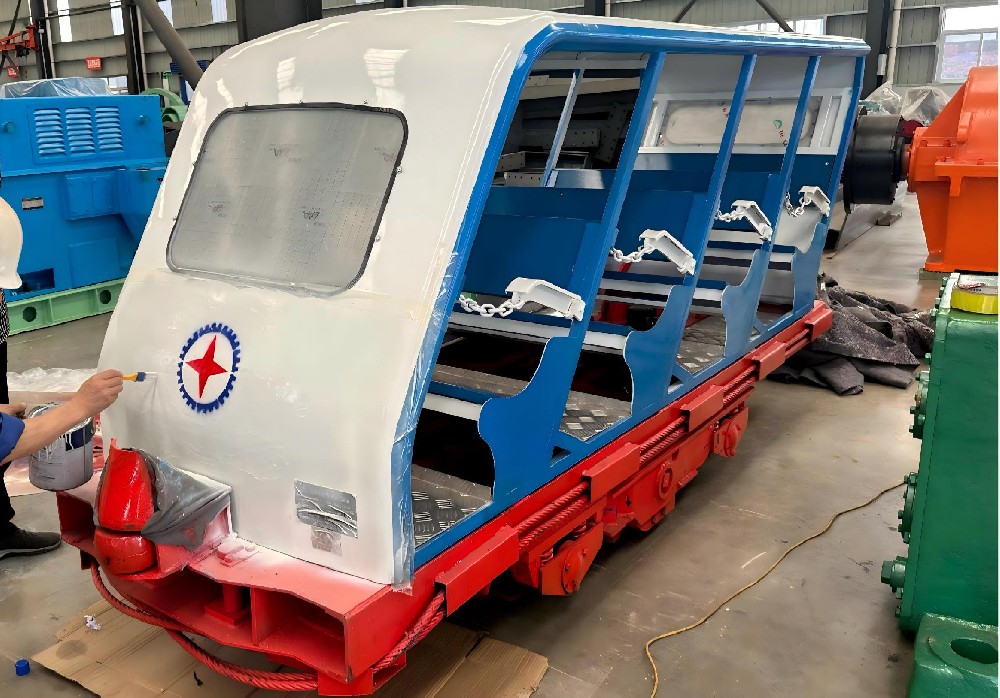

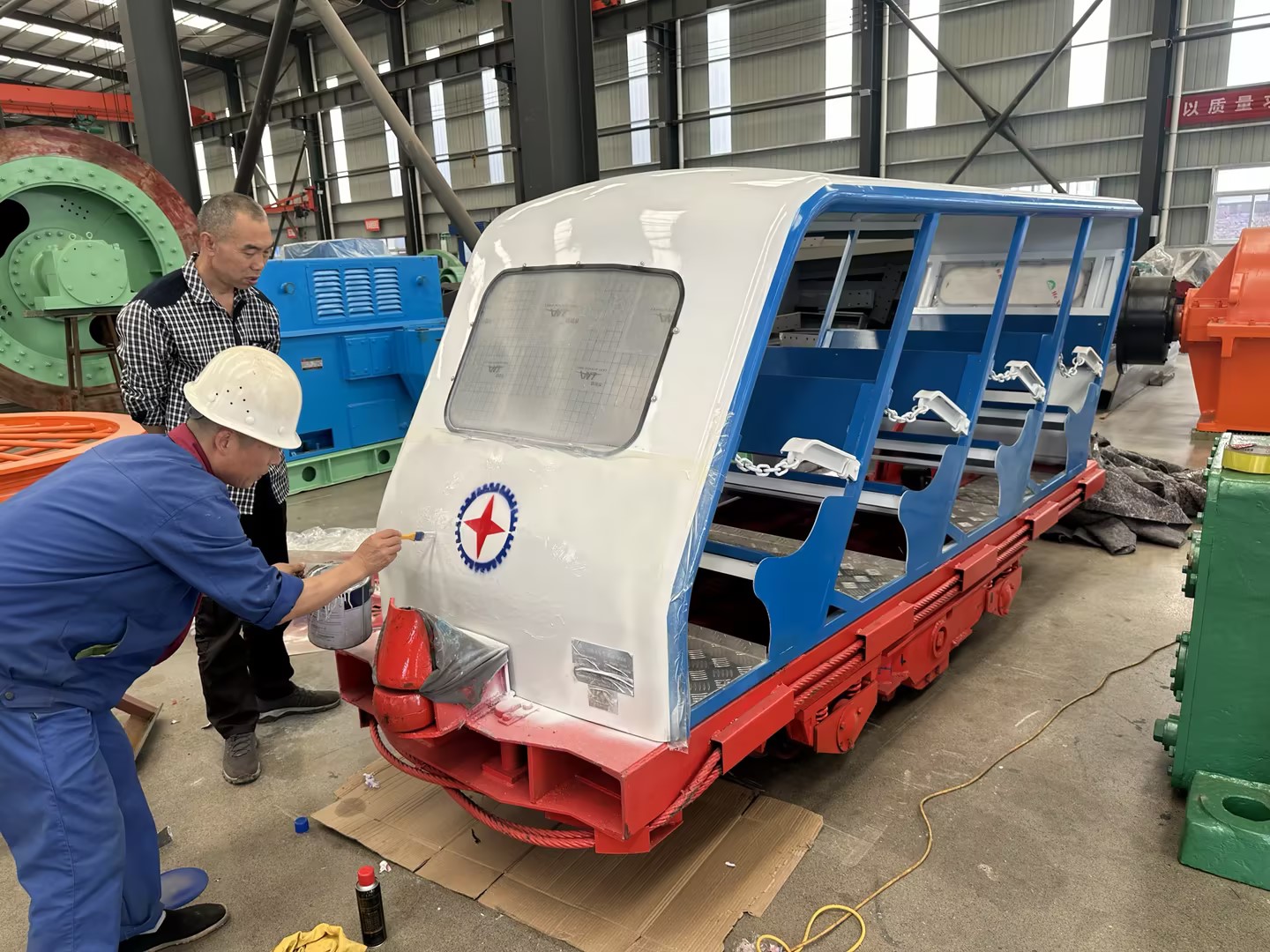

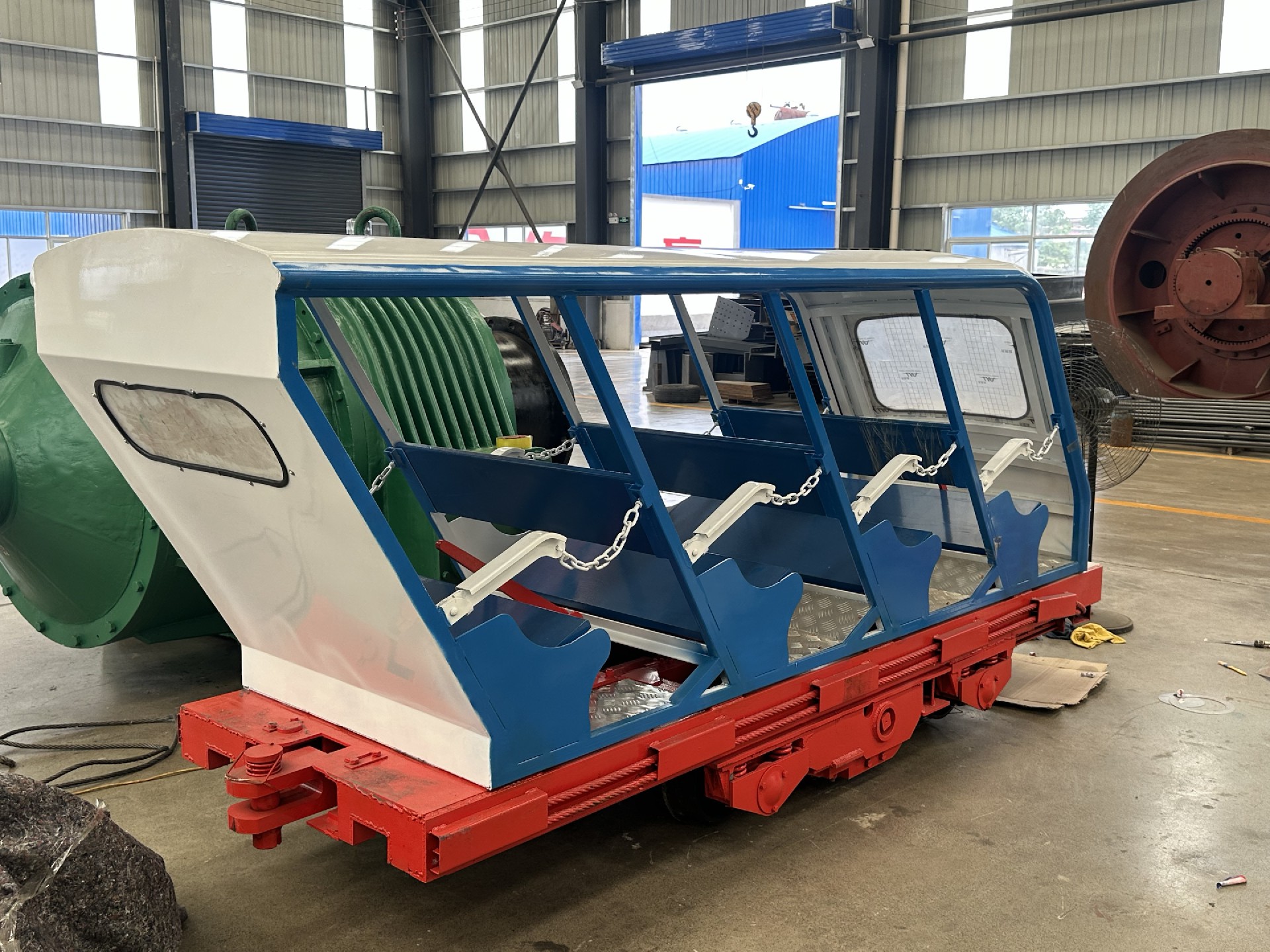

Inclined Shaft Personnel Carrier (Man-Riding Car)

Safe and Reliable Transportation Solution for Underground Mines

Product Overview

The Inclined Shaft Personnel Carrier (Man-Riding Car) is a specialized transportation vehicle designed for the safe and efficient movement of personnel in underground mines and inclined shafts. It operates on rail tracks installed in inclined tunnels and is widely used in coal mines, metal mines, non-metal mines, and underground engineering projects.

Built with a robust steel structure, advanced braking systems, and a comfortable passenger compartment, the vehicle ensures reliable operation under demanding underground conditions while maximizing worker safety and transportation efficiency.

Key Features

High Safety Standards

• Heavy-duty steel frame construction

• Multiple braking protection systems

• Anti-rollback safety device

• Emergency stopping mechanism

• Compliant with mining safety regulations

Comfortable Passenger Cabin

• Ergonomically designed seating arrangement

• Spacious interior for easy boarding and exiting

• Protective enclosed front cabin

• Anti-slip floor plates

• Excellent ventilation and visibility

Durable and Reliable

• High-strength welded structure

• Corrosion-resistant coating

• Wear-resistant running components

• Designed for long service life in harsh mining environments

Easy Maintenance

• Modular component design

• Convenient inspection access

• Low maintenance requirements

• Reduced downtime and operating costs

Working Principle

The Inclined Shaft Personnel Carrier is connected to a hoisting system and travels along rail tracks installed in an inclined shaft. Personnel board the carrier at designated stations and are safely transported between underground and surface levels.

During operation, the vehicle is protected by multiple safety systems, including:

• Service braking system

• Emergency braking system

• Mechanical anti-runaway device

• Coupling and connection protection mechanisms

These systems ensure safe transportation even under challenging operating conditions.

Technical Advantages

Efficient Personnel Transportation

• Rapid movement of workers between levels

• Reduced travel time in underground operations

• Improved labor productivity

Enhanced Operational Safety

• Stable running performance

• Reliable braking capability

• Secure passenger protection design

Adaptable Design

• Suitable for different shaft gradients

• Available in multiple passenger capacities

• Customizable according to mine requirements

Low Operating Cost

• Long equipment lifespan

• Reduced maintenance expenses

• Energy-efficient operation

Applications

The Inclined Shaft Personnel Carrier is widely used in:

• Coal Mining Operations

• Gold Mines

• Copper Mines

• Iron Ore Mines

• Non-Ferrous Metal Mines

• Underground Tunneling Projects

• Hydropower Construction Projects

• Underground Infrastructure Development

Optional Configurations

• Different passenger capacities

• Enhanced safety monitoring system

• Communication system

• LED lighting system

• Custom cabin design

• Special anti-corrosion treatment

• Mine-specific safety accessories

Why Choose Our Inclined Shaft Personnel Carrier?

✔ Proven safety performance

✔ Rugged construction for harsh environments

✔ Comfortable passenger transportation

✔ Low maintenance requirements

✔ Custom engineering solutions

✔ Professional technical support and after-sales service

Technical Specifications

Contact Us

For detailed specifications, drawings, capacity options, and customized solutions, please contact our engineering team. We provide complete design, manufacturing, installation guidance, and after-sales support for underground transportation systems worldwide.
