2JTK mining winch
- Roll configuration : Double drum structure, diameter 1.6-3.5m
- Increase speed : ≤3.5m/s (adjustable)
- Applicable conditions : Well depth ≤1000m, inclination ≤25°
-
Product Introduction :
Double-drum winding mine hoisting special equipment is designed specifically for medium-deep wells and high-yield mines. It is suitable for heavy-load hoisting scenarios such as coal mines and metal mines, and can meet the needs of material transportation and personnel lifting at the same time.
- INTRODUCTION
- SPECIFICATION
- RELATED
- INQUIRY
2JTK Mining Hoisting Winch Product Introduction
1. Product Overview
2JTK series mining hoisting winch is a double-drum winding equipment, specially designed for inclined tunnels and small shafts in coal mines,
metal mines and non-metallic mines, mainly used for material lifting (such as ore, equipment) and personnel transportation.
2. Core structure and design features
Spindle device:
Adopts split drum structure (easy to transport and install), the drum shell is made of high-strength low-alloy steel Q345A, and the surface is pressed with spiral rope grooves to reduce wire rope wear;
Equipped with adjustable double-row roller bearings at both ends of the spindle to achieve full rolling transmission, and the overall efficiency is ≥90%.
Braking system:
Block brake (hydraulic drive or resistance speed regulation), short response time, support secondary braking and manual rope adjustment clutch;
The hydraulic station drive system complies with the safety redundancy design and can automatically brake in the event of a power outage.
Transmission and control:
Equipped with planetary gear reducer or cylindrical gear reducer, the transmission is smooth and low noise;
Optional resistance speed regulation or frequency conversion speed regulation system, energy saving of more than 30%, support low-speed heavy-load starting.
3. Safety protection function
Multiple monitoring: integrated sensors for overspeed, overwinding, rope loosening, brake shoe wear, etc., to monitor the operating status in real time;
Dual indication: mechanical arch indicator combined with digital depth indicator, high positioning accuracy;
Emergency protection: supports automatic braking and broken shaft protection in case of power failure, in compliance with GB 16423 safety regulations
4. Application scenarios and limitations
Applicable scenarios: Material transportation in inclined tunnels in coal mines, personnel lifting in small vertical shafts (must meet explosion-proof requirements);
Restrictions:
Non-explosion-proof models are prohibited from being used in flammable and explosive environments;
Inclined shafts allow 3 layers of winding, and passenger loads are limited to 2 layers; vertical shafts are limited to 2 layers, and passenger loads are limited to a single layer.

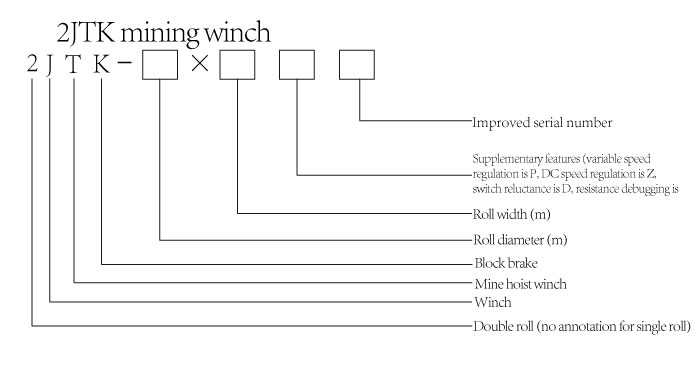

| 2JTK Mining Winch | |||||||||
| model | reel | Maximum static tension of wire rope KN | Maximum static tension difference between two wire ropes KN | Maximum wire rope diameter mm | Maximum lifting speed m/s | Number of winding layers | Maximum lifting height or inclined length m | ||
| Number | Diameter m | Width m | |||||||
| 2JTK-1.2×0.8 | 2 | 1.2 | 0.8 | 30 | 20 | 20 | 2.6 | 3 | 370 |
| 2JTK-1.2×1 | 2 | 1.2 | 1 | 30 | 20 | 20 | 2.6 | 3 | 472 |
| 2JTK-1.4×1 | 2 | 1.4 | 1 | 35 | 25 | 22 | 2.6 | 3 | 505 |
| 2JTK-1.6×0.9 | 2 | 1.6 | 0.9 | 45 | 30 | 26 | 4.1 | 3 | 434 |
| 2JTK-1.6×1.2 | 2 | 1.6 | 1.2 | 45 | 30 | 26 | 4.1 | 3 | 601 |
