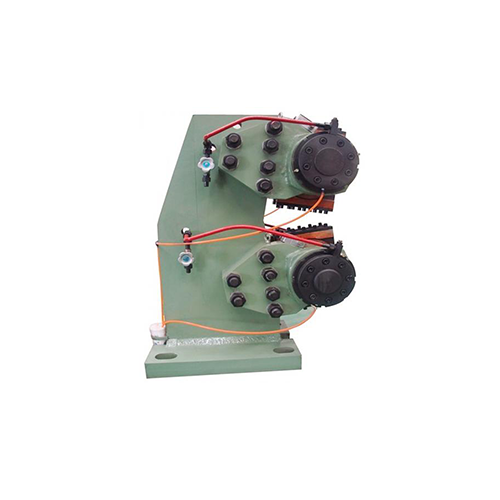

TP Series Disc Brake
- Braking torque : Customized according to the specifications of the hoist, typical range is 10kN·m-500kN·m.
- Response time : Hydraulic brake ≤ 0.3 seconds, supports constant deceleration or constant torque control.
- Heat resistance : The brake disc material can withstand high temperatures up to 300°C (500°C with special treatment).
-
Adaptability :
Linked with hydraulic station, the pressure range is 4MPa-16MPa.
- INTRODUCTION
- SPECIFICATION
- RELATED
- INQUIRY
TP Series Disc Brake Technical Specifications
1. Overview
The TP series spring-applied, hydraulically released disc brakes provide failsafe braking for heavy machinery including mine hoists and port cranes. Compliant with GB/T 3811-2008 and AQ 1036-2007 standards, they deliver up to 3,000 kN·m braking torque with ≤0.3s response time.
2. Structural Components
Brake Disc: 65Mn/42CrMo alloy steel (HRC45-50), Ø800-2500mm
Brake Caliper: Asbestos-free pads (μ≥0.35), disc spring assembly
Hydraulic Station: 4-6MPa working pressure with proportional valve
3. Technical Features
| Parameter | Specification |
|---|---|
| Max Torque | 3,000 kN·m |
| Service Life | 50,000+ braking cycles |
| Temperature Range | -30℃~80℃ |
4. Applications
Mine Hoists: JKMD series friction hoists
Port Cranes: Heavy-load container handling
Wind Turbines: Yaw brake systems
5. Technical Parameters
| Model | Disc Ø | Torque | Application |
|---|---|---|---|
| TP-800 | 800mm | 80 kN·m | JKMD-1.6×4 |
| TP-2500 | 2500mm | 3,000 kN·m | JKMD-4.5×6 |
6. Selection & Installation
Torque Formula: T = (F×D×μ×η)/2
Alignment: ≤0.1mm disc runout
Surface Finish: Ra≤1.6μm
7. Maintenance Protocol
Weekly: Check HM46 hydraulic oil quality (NAS 8)
Quarterly: Measure pad thickness (replace at 5mm)
Annually: Spring force verification
8. Compliance Standards
AQ 1036-2007 (Mine Hoist Safety)
JB/T 7020-2006 (Disc Brakes)
9. Summary
The TP series ensures operational safety through its dual-stage braking and IP55 protection. Critical selection factors include disc diameter (800-2500mm) and environmental conditions (-30℃~80℃).
| Model | Disc Diameter (mm) | Braking Torque (kN·m) | Working Pressure (MPa) | Response Time (ms) | Weight (kg) | Temperature Range (°C) |
|---|---|---|---|---|---|---|
| TP-200 | 200 | 1.5-3.2 | 1.0-2.5 | ≤80 | 18 | -30~+120 |
| TP-400 | 400 | 6.3-12.5 | 2.0-4.0 | ≤100 | 45 | -40~+150 |
| TP-630 | 630 | 20-40 | 4.0-6.3 | ≤120 | 120 | -50~+200 |
Technical Specifications:
Disc Material: 20CrMnTi alloy steel with hardening treatment (HRC 50-55)
Sealing System: Double-lip NBR seals with dust protection
Mounting: ISO 3019-2 standard flange patterns
Friction Material: Sintered metallic pads (asbestos-free)
Protection Class: IP65 (IP67 optional)
Standards: DIN 15435, ISO 9001:2015 certified
Performance Features:
Automatic wear compensation system
Manual release mechanism for emergency operation
Corrosion-resistant surface treatment (zinc-nickel plating)
Vibration-resistant design (up to 5g acceleration)
* Braking torque values based on μ=0.4 friction coefficient
** Maximum 500,000 braking cycles at rated load
† Optional sensors: pad wear indicator, temperature monitoring
