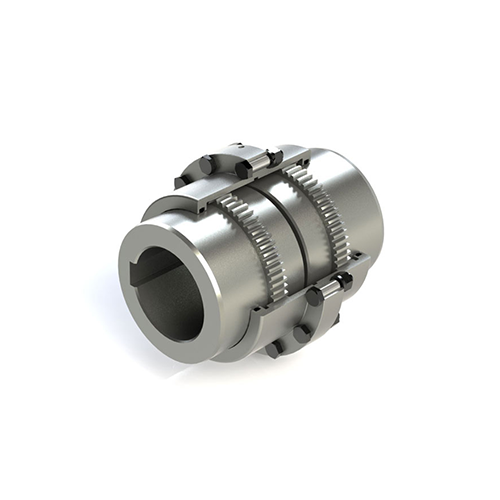

CL Gear Coupling
- Typical Applications : Suitable for low-speed and heavy-load scenes such as metallurgy, mining, and lifting, and can adapt to temperatures of -40℃~45℃.
- Material : 45# steel or cast steel, tooth surface hardness HB300-350, drum-shaped tooth surface hardening treatment.
- Permissible torque : 710 N·m ~ 1,000,000 N·m (Drum tooth design has 15%-20% higher load capacity than straight tooth design).
-
Permissible speed :
3780 r/min (small model) ~ 300 r/min (large model), high-speed models require dynamic balancing.
- INTRODUCTION
- SPECIFICATION
- RELATED
- INQUIRY
CL Series Gear Coupling Technical Specifications
1. Overview
The CL series all-metal gear couplings (compliant with JB/T 8854.3-2001) provide high-torque transmission with misalignment compensation, ideal for heavy industries including metallurgy and mining. Rated torque up to 800 kN·m with 15,000 RPM capability.
2. Structural Components
External Gear Hub: 42CrMo alloy steel, HRC50-55 hardness
Internal Gear Ring: ZG45 cast steel with keyway/shrink disc options
Sealing: Dual labyrinth/rubber seal configurations
3. Technical Features
| Parameter | Specification |
|---|---|
| Torque Range | 71 N·m - 800 kN·m |
| Misalignment Capacity | Axial: ±15mm Radial: 6.3mm Angular: 1° |
| Max Speed | 15,000 RPM |
4. Technical Parameters
| Model | Torque | Speed | Shaft Bore |
|---|---|---|---|
| CL1 | 0.071 kN·m | 8,800 RPM | 18-50mm |
| CL12 | 800 kN·m | 1,200 RPM | 260-400mm |
5. Applications
Metallurgy: Rolling mills, continuous casters
Mining: Hoists, ball mills
Energy: Wind turbines, ship propulsion
6. Selection & Installation
Torque Formula: T = 9550 × P/n
Alignment: 0.5-1mm/m thermal expansion gap
Fastening: 450-500 N·m for M20 bolts
7. Maintenance Protocol
Lubrication: NLGI 2 grease every 1,500-3,000h
Inspection: Check wear patterns quarterly
8. Product Comparison
| Feature | CL Gear | Elastic |
|---|---|---|
| Load Capacity | High | Medium |
| Maintenance | Regular greasing | None |
9. Compliance Standards
JB/T 8854.3-2001 (Gear Couplings)
ISO 14691:2008 (Petroleum Standards)
10. Summary
The CL series delivers reliable power transmission in heavy-duty applications with 100,000+ hour service life. Critical factors include proper lubrication management and misalignment control within specified limits.
| Model | Rated Torque (kN·m) | Max Speed (r/min) | Bore Range (mm) | Weight (kg) | Allowable Offset |
|---|---|---|---|---|---|
| CL1 | 0.8 | 4000 | 12-40 | 6.5 | ±1.0° |
| CL3 | 3.15 | 3800 | 25-65 | 18.7 | ±1.2° |
| CL5 | 8.0 | 3000 | 40-100 | 45.2 | ±1.5° |
Technical Specifications:
Gear Teeth: 20° pressure angle, 38 teeth (20CrMnTi hardened)
Hub Material: 45# steel with zinc plating
Lubrication: Grease-filled (NLGI 2) with sealing system
Standard Compliance: AGMA 9005, ISO 14691
Temperature Range: -30℃ to +120℃
Protection Class: IP55 (IP65 optional)
Performance Features:
Radial displacement: ≤0.4mm
Axial displacement: ±2.5mm
Vibration damping: ≤50μm
Maintenance interval: 5000 operating hours
* Torque values based on SF=1.5 service factor
** Bore tolerance: H7/k6 fit standard
† Optional stainless steel version available (AISI 304/316)
