INTRODUCTION

Product Introduction

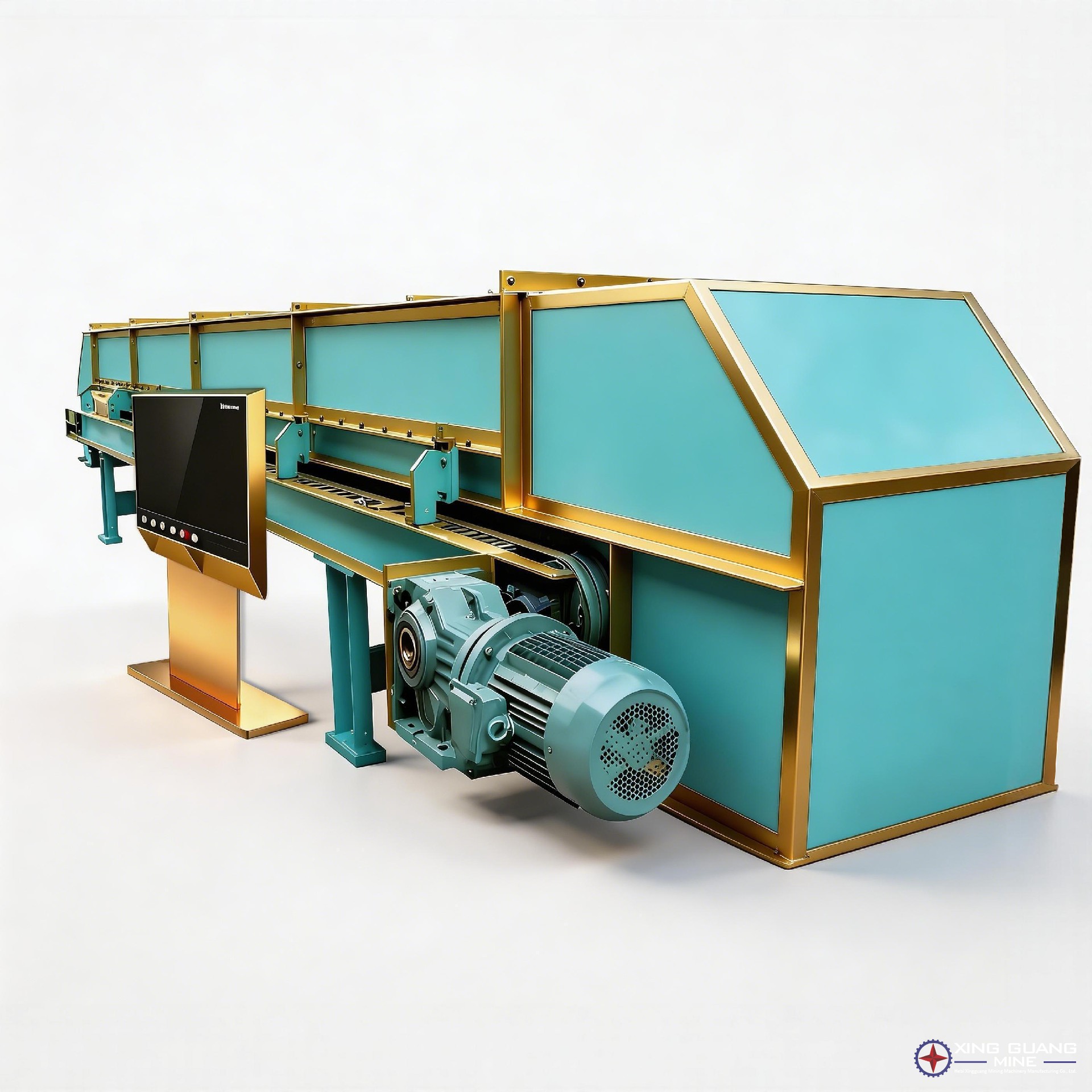

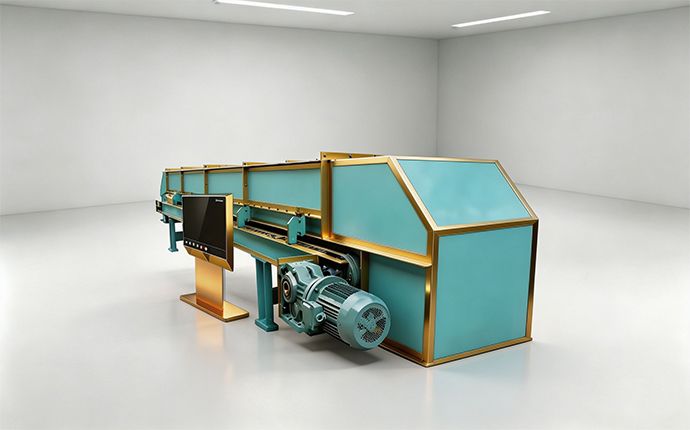

The Belt Conveyor consists mainly of a frame, conveyor belt, rollers, drum, tensioning device, and drive system. The drive drum is powered by an electric motor through a reducer. The conveyor belt is driven by the friction between the drive drum and the belt. Material is fed into the system from the feeding end, placed on the rotating conveyor belt, and moved to the discharge end via the belt’s friction.

workflow diagram

Working Principle

1. Closed Circuit:

The conveyor belt loops around the drive drum at the head and the reversing drum at the tail, forming a closed-loop system.

2. Tension Force:

The tensioning device (such as a gravity type or spiral type tensioner) applies a certain amount of tension to the conveyor belt, ensuring that it maintains the necessary initial tension at the point where it separates from the drive drum.

3. Friction Drive:

The drive system (motor, reducer, etc.) drives the drive drum to rotate. The friction between the drive drum and the conveyor belt continuously moves the belt forward.

4. Loading and Conveying:

Material is loaded onto the moving conveyor belt at the loading end. The static friction between the conveyor belt and the material ensures the stable transfer of the material to the discharge end, where it is unloaded. During this process, the conveyor belt not only carries the material but also provides the necessary traction to move it.

Product Highlights

Strong Conveying Capacity | Stable Operation | Good Adaptability | Convenient Maintenance

* Capable of continuous waste transportation for large quantities, adaptable to different scales of waste sorting operations.

* The continuous movement of the conveyor belt ensures the continuity of waste transport, reducing downtime caused by equipment failure and improving sorting efficiency.

* Depending on the characteristics of the waste and sorting process requirements, different types of belt conveyors and belts can be selected.

* Simple structure, high degree of standardization of parts, making routine maintenance and repairs easier and reducing maintenance costs.

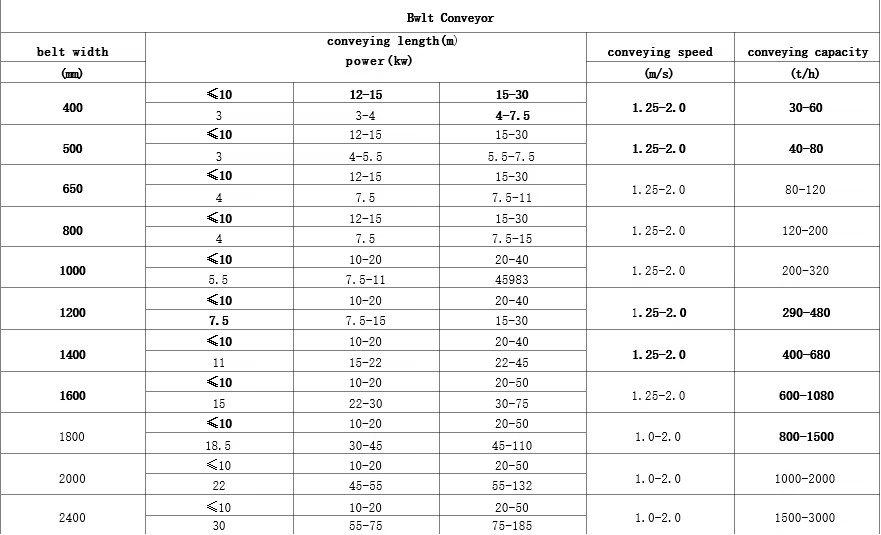

SPECIFICATION

Model	Belt Width (mm)	Conveying Length (m)	Conveying Speed (m/s)	Capacity (T/H)	Motor Power (kW)	Idler Type	Equipment Dimension (mm)	Weight (T)	Application Materials	Application Area
BC-400	400	≤30	1.25-2.0	30-60	3-7.5	Trough Idler	12000×800×1200	1.8	MSW, Sand, Small Materials	Small Conveying System
BC-500	500	≤30	1.25-2.0	40-80	4-7.5	Trough Idler	15000×900×1300	2.5	Coal, Construction Waste, Ore	Medium-small Conveyor Line
BC-650	650	≤30	1.25-2.0	80-120	7.5-11	Impact Idler	18000×1100×1400	3.8	Industrial Waste, Aggregate	Continuous Conveying System
BC-800	800	≤30	1.25-2.0	120-200	7.5-15	Trough Idler	22000×1300×1500	5.5	Ore, Mixed Waste, Construction Waste	Medium Conveying Production Line
BC-1000	1000	≤40	1.25-2.0	200-320	10-40	Heavy-duty Idler	28000×1500×1700	8.5	Large Ore, Industrial Waste	Large Continuous Conveying System
BC-1200	1200	≤40	1.25-2.0	290-480	15-40	Heavy-duty Impact Idler	32000×1700×1800	11.5	Mining Stone, MSW	Large Aggregate & Waste Treatment System
BC-1400	1400	≤50	1.25-2.0	400-680	22-45	Heavy-duty Trough Idler	38000×2000×2100	16	Large Ore, Construction Waste	Large Mining Conveying System
BC-1600	1600	≤75	1.25-2.0	600-1080	30-75	Impact-resistant Idler	45000×2300×2400	22.5	Bulk Materials, Industrial Waste	Heavy-duty Continuous Conveying System
BC-1800	1800	≤110	1.0-2.0	800-1500	45-110	Heavy-duty Wear-resistant Idler	52000×2600×2600	30	Mining Stone, Port Bulk Materials	Large Bulk Material Conveying System
BC-2000	2000	≤132	1.0-2.0	1000-2000	55-132	Super Heavy-duty Idler	62000×3000×3000	42	Ore, Coal, Bulk Industrial Materials	Super Large Conveying System
BC-2400	2400	≤185	1.0-2.0	1500-3000	75-185	Super Heavy-duty Idler	78000×3600×3500	58	Port Bulk Cargo, Mining Raw Materials	Super Large Port & Mining Conveying System
